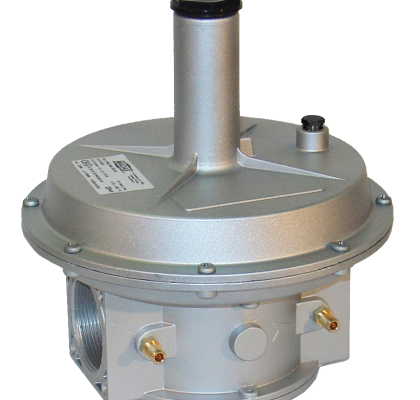

MADAS FRG/2M

FRG/2M combines gas pressure regulation with an integral filter.

Download Technical Datasheet ↓Request a Quotation ↗

Product Overview & Applications

FRG/2M combines gas pressure regulation with an integral filter. A compensated obturator maintains the preset downstream pressure within the operating limits despite changing inlet pressure or flow. The selected spring determines the outlet setting.

Technical Specifications

Maximum operating pressure	500 mbar / 0.5 bar
Integral filtration	50 µm
Ambient temperature	−15°C to +60°C
Threaded range	DN15–DN50; EN10226
Flanged range	DN25–DN100; PN16-compatible, with DN25 on request
Regulation class	Class A, P2 ±15%

Specifications refer to the cited product literature. Final ratings and options follow the selected model and ordered configuration.

Features & Configuration

Safety membrane and outlet pressure test connection.
FRG/2MR variant offers 90-degree threaded connections.
NPT or ANSI150 connections available on request.

Selection & Quotation

Specify FRG/2M model code, gas, connection arrangement, inlet pressure, outlet spring range and flow. FRG/2MB is a separate variant.
